S-LAH Glass Types

Optical Glass Type S-LAH / Eco Optical Glass

S-LAH Glass Types

Optical Glass / Eco Optical Glass

Type Code nc nd nF ng vd s.g. Coloring Datasheet
786442 1.78058 1.78590 1.79836 1.80838 44.20 4.40 390/335
800422 1.79388 1.79952 1.81281 1.82355 42.22 4.41 395/330
800422 1.79389 1.79952 1.81282 1.82356 42.24 4.47 390/335
806409 1.80024 1.80610 1.81996 1.83117 40.92 4.49 405/340
806409 1.80026 1.80610 1.81995 1.83121 40.93 4.41 400/345
835427 1.82898 1.83481 1.84852 1.85956 42.73 4.73 400/325
835427 1.82899 1.83481 1.84852 1.85955 42.74 4.58 395/320
883408 1.87656 1.88300 1.89822 1.91050 40.76 5.52 (375)/315
816466 1.81075 1.81600 1.82825 1.83800 46.62 5.07 390/290
834372 1.82738 1.83400 1.84982 1.86278 37.16 4.43 420/340
834372 1.82739 1.83400 1.84983 1.86281 37.17 4.71 425/340
834372 1.82740 1.83400 1.84981 1.86283 37.21 4.43 430/350
804396 1.79838 1.80440 1.81870 1.83034 39.59 4.34 410/340
804396 1.79840 1.80440 1.81872 1.83043 39.58 4.45 415/345
788474 1.78300 1.78800 1.79963 1.80888 47.37 4.30 380/315
804466 1.79882 1.80400 1.81608 1.82569 46.58 4.72 385/315
804465 1.79882 1.80400 1.81610 1.82573 46.53 4.46 380/310
773496 1.76780 1.77250 1.78337 1.79197 49.60 4.23 370/305
850323 1.84259 1.85026 1.86893 1.88456 32.27 4.36 (425)/370
003283 1.99301 2.00330 2.02850 2.04972 28.27 5.23 (460)/370
917316 1.90803 1.91650 1.93703 1.95418 31.60 4.74 (400)/355
852408 1.84530 1.85150 1.86618 1.87807 40.78 4.70 (380)/340
892371 1.88482 1.89190 1.90884 1.99273 37.13 4.87 (400)/350
905350 1.89768 1.90525 1.92351 1.93862 35.04 4.83 (410)/355
904313 1.89528 1.90366 1.92411 1.94130 31.34 4.64 (410)/360
764485 1.75913 1.76385 1.77488 1.78369 48.49 4.54 400/345
755523 1.75063 1.75500 1.76506 1.77296 52.32 4.17 355/-
954323 1.94514 1.95375 1.97465 1.99207 32.32 4.94 (405)/355
001291 1.99105 2.00100 2.02540 2.04600 29.14 5.02 (425)/360
001291 1.99105 2.00100 2.02540 2.04600 29.14 5.02 (405)/360

NR = Non-Recommended / Discontinued

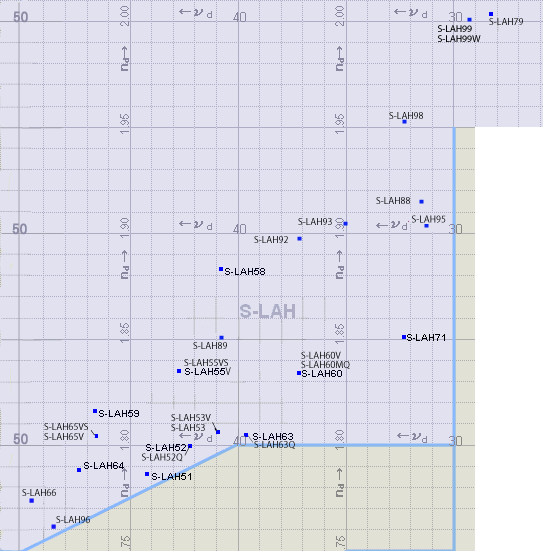

map-s-lah01-2022-11 S-LAH99W S-LAH60MQ S-LAH98 S-LAH79 S-LAH63Q S-LAH52Q S-LAH96 S-LAH65VS S-LAH53V S-LAH60V S-LAH55VS S-LAH93 S-LAH95 S-LAH89 S-LAH88 S-LAH71 S-LAH58 S-LAH60 S-LAH55V S-LAH63 S-LAH52 S-LAH59 S-LAH64 S-LAH53 S-LAH65V S-LAH51 S-LAH99 S-LAH66 S-LAH92 map-s-lah97-2020-01 S-LAH97
